Resonance And Mesomeric Effect

There are many organic molecules which can not be represented by a single lewis structure. In turn, they are assigned more than one structure called canonical forms or contributing of resonating structures. The phenomenon exhibited by such compounds is called resonance. For example, 1, 3 – butadiene has following resonance structure.

Resonance And Mesomeric Effect

and canonical forms of vinyl chloride are

Resonance And Mesomeric Effect

While drawing these canonical forms, the prime thing that has to be kept in mind is that the relative position of any of the atom should not change while we are allowed to change the relative positions of π - bonded electron pair or distribution of charge to other atoms. Also remember that it is not the case that some molecules have one canonical form and some have another form. All the molecules of the substance have the same structure. That structure is always the same all the time and is a weighted average of all the canonical forms. In real sense, these canonical forms have no expect in our imaginations. Now we are in a position to discuss about the conditions necessary for a compound to show resonance. The two essential conditions are

(a) There must be conjugation in the molecule. Conjugation is defined as the presence of alternate double and single bonds in the compound like

Resonance And Mesomeric Effect

(b) The part of the molecules having conjugation must be essentially planar or nearly planar. The first condition of conjugation is not only confined to the one mentioned above but some other systems are also categorized under conjugation. These are

(i)

Resonance And Mesomeric Effect

(ii)

Resonance And Mesomeric Effect

(iii)

Resonance And Mesomeric Effect

(iv)

Resonance And Mesomeric Effect

(v)

Resonance And Mesomeric Effect





So, any molecules satisfying both the conditions will show resonance. For example, we consider phenol. The structure of phenol is

Resonance And Mesomeric Effect

By looking at the structure, it must be clear to you that the compound possesses conjugation of the type



Resonance And Mesomeric Effect

As well as the category (iv) because the lone pairs on oxygen are in conjugation with unsaturated (sp2 hybridised) carbon of the ring. Since, oxygen atom is sp3 hybridized in phenol.

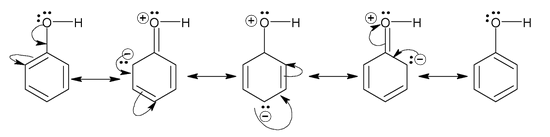

The lone pairs on oxygen are nearly planar with respect to the PZ orbital of carbon linked to oxygen. Thus, both the conditions are fulfilled by phenol, therefore it does show resonance and its resonance structures are represented as

Resonance And Mesomeric Effect

This has to be borne in mind that resonance always results in different distribution of electron density than would be the case if there were no resonance. It is a permanent effect, also referred as mesomeric effect.

Note:

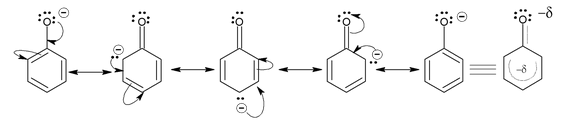

The acidity of phenol can be explained by resonance

Resonance And Mesomeric Effect

Resonance And Mesomeric Effect

The above structure shows that the phenoxide ion formed is more resonance stabilised than phenol. Hence, the acidity of phenol is explained.

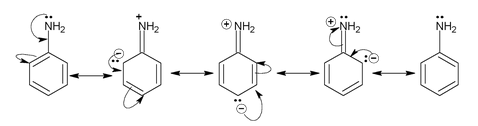

Similarly basicity of aniline can be explained.

Resonance And Mesomeric Effect

The above structure shows that the lone pair present on N – atom undergoes into resonance and is not available for donation. Hence, the basicity of aniline decreases and is less than aliphatic amineR-Resonance And Mesomeric Effect.

Resonance (mesomeric) effect is of two types.

(i) If the atom or group of atoms is giving electrons through resonance, it is called +R or +M effect. For example,

Resonance And Mesomeric Effect



(+M effect of ⎯NH2 group)

Other groups that shows +M effect are ⎯NHR, ⎯NR2, ⎯OH, ⎯OR, ⎯NHCOR, ⎯Cl, ⎯Br, ⎯I etc.

(ii) If the atom or group of atoms is withdrawing electrons through resonance, it is called ⎯R or ⎯M effect. For example,

Resonance And Mesomeric Effect



(-M effect of ⎯NO2 group)

Other groups showing ⎯M effect are ⎯CN, ⎯CHO, ⎯COR, ⎯CO2H, ⎯CO2R, ⎯CONH2, ⎯SO3H, ⎯COCl etc.

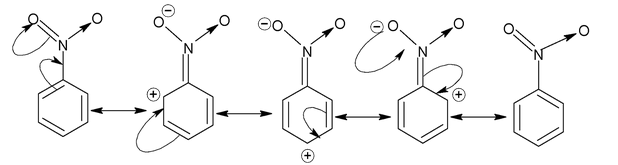

Now, let us consider resonance in nitrobenzene and its various canonical structures are

Resonance And Mesomeric Effect

The ⎯NO2 group in nitrobenzene has ⎯M effect. In general, if any atom (of the group) attached to the carbon of benzene ring bears atleast one lone pair, then the group shows +M effect while if the atom (of the group) linked to the benzene carbon bears either a partial or full positive charge, then the group exhibits ⎯M effect.

In drawing the canonical forms and deciding about their relative stabilities, following rules are give for your guidance.

(i) All the canonical forms must be bonafide lewis structures for example, none of them may have a carbon with five bonds.

(ii) All atoms taking part in the resonance must lie in a plane or nearly so. The reason for planarity is to have maximum overlap of the p – orbitals.

(iii) All canonical forms must have the same number of unpaired electrons. Thus CH2 ⎯ CH = CH ⎯ CH2 is not a valid canonical form for 1, 3 ⎯ butadien.

(iv) The energy of the hybrid (actual) molecule is lower than that of any canonical form. Obviously then, delocalization is a stabilizing phenomenon. The difference in energy between the hybrid and the most stable canonical structure is called resonance energy.

(v) All canonical forms do not contribute equally to the actual molecule. Each form contributes in proportion to its stability, the most stable form contributing the most.

(vi) Structures with more covalent bonds are generally more stable than those with fewer covalent bonds.

(vii) Structure with formal charges is less stable than uncharged structures. For charged structure, the stability is decreased by an increase in charge separation and the structure with two like charges on adjacent atoms are highly unfavourable.

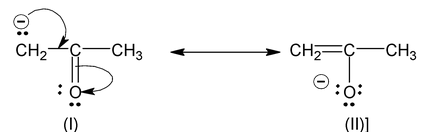

(viii) Structures that carry a negative charge on a more electronegative atom are more stable than those in which the charge is on a less electronegative atom. For example,

Resonance And Mesomeric Effect

Structure (II) is more stable than (I). Similarly positive charges are best occupied on atoms of low electronegativity

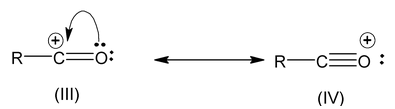

(ix) Those structures in which octet of every atom (expect for hydrogen which have douplet) is complete are more stable than the others with non complete octets. For example,

Resonance And Mesomeric Effect

Structure (IV) is more stable than (III).

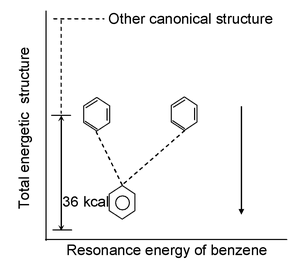

Resonance Energy:

The difference in energy between the hybrid and the most stable canonical structure is  called as resonance energy

Resonance And Mesomeric Effect
