Cuboid: Definition, Shape, Properties, Formulas, and Examples
A cuboid is a 3D shape with six rectangular faces, twelve edges, and eight vertices. Check out cuboid's properties, dimensions, components, and formulas with examples here.
Chandni 17 Jun, 2025
Share
What is Cuboid - A Cuboid is a three-dimensional shape that looks like a rectangular box, with six faces, twelve edges, and eight vertices. It is also called a rectangular prism. All its faces are rectangles, and opposite faces are equal and parallel. This means the shape is balanced and uniform, making it easy to identify.
A cuboid is formed when rectangles are stacked together to create a 3D figure. Each face meets its neighboring faces at right angles, ensuring all edges and corners are well-defined. For instance, if you stack identical books on top of one another, they create a cuboid-like shape. An example of a cuboid in real life is a shoebox. The top and bottom of the box are larger rectangles, while the four sides form the remaining faces. The edges are the straight lines where two faces meet, and the corners where three edges come together are the vertices. [video width="1920" height="1080" mp4="https://www.pw.live/exams/wp-content/uploads/2024/12/Curious-Jr-Ad-3-1-1.mp4"][/video]
Cuboid Definition
Properties of Cuboid
Here are the key properties of cuboid to help you understand it better:- A cuboid has three dimensions: length, width, and height.
- It consists of 6 faces, 12 edges, and 8 vertices.
- All angles formed at the vertices are right angles (90 degrees).
- Opposite edges of the cuboid are parallel to each other.
- Each face of a cuboid is a rectangle.
- The opposite faces of the cuboid are parallel and congruent.
- Each face of a cuboid has two diagonals, connecting opposite corners.

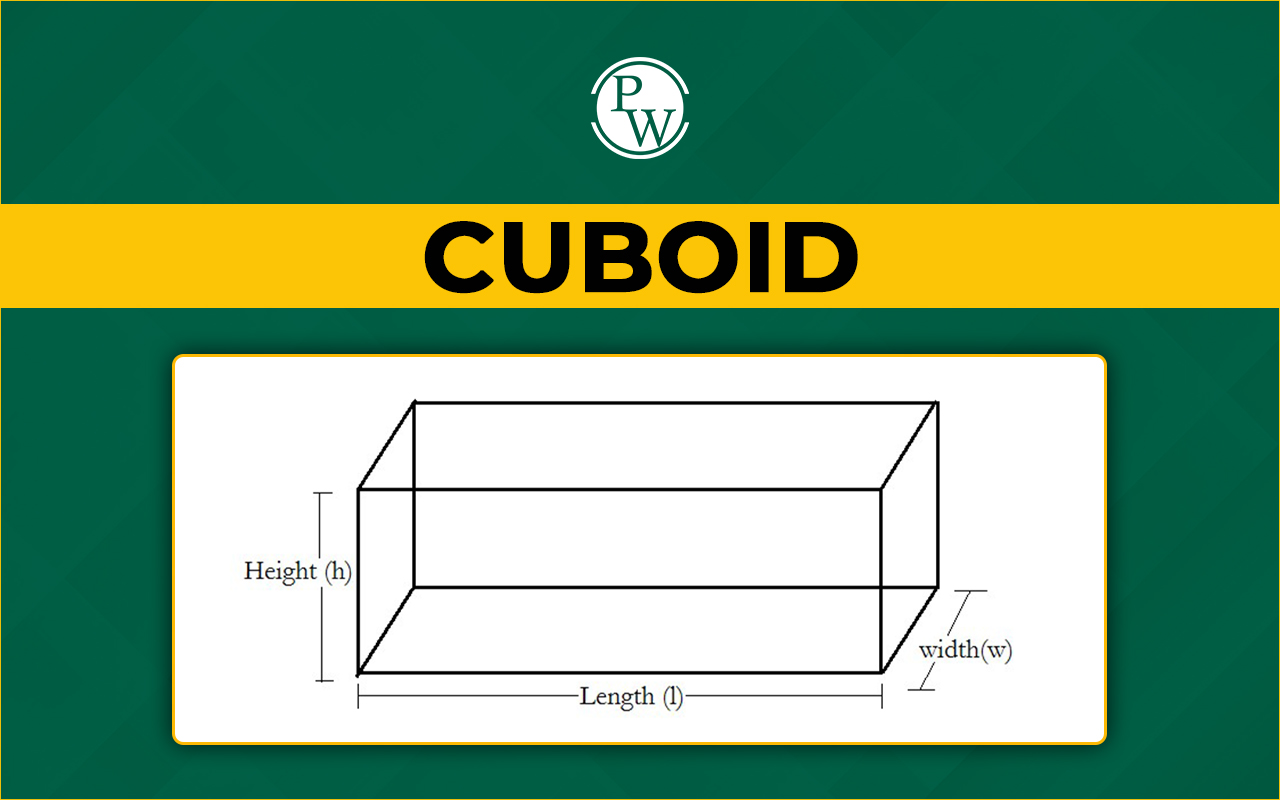

Dimensions of a Cuboid
Let’s learn about the three dimensions of a cuboid that define its shape and size clearly.
Length (L)
Length is generally considered the longest side of the cuboid. It measures the distance between two vertices along the longest edge. However, this isn’t fixed; a change in orientation can make another side appear as the length. For instance, in a shoebox measuring 15 cm × 10 cm × 8 cm, the 15 cm side is typically identified as the length. When placed upright, the 10 cm side could also be called the length, depending on perspective. This flexibility allows the Cuboid to adapt to different use cases.Width (W)
The width is the shorter side of the cuboid that goes across it. In the same shoebox, the 10 cm side represents the width, while the 15 cm side is the length. The width is always perpendicular to the length, which helps keep the cuboid in a rectangular shape. This dimension is used for calculating surface area and volume.Height (H)
Height refers to the side perpendicular to both the length and the width. It defines how tall or deep the cuboid is. For the shoebox example, the 8 cm side is the height when the box is placed flat.Faces, Edges, and Vertices of a Cuboid

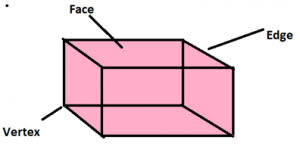

Let’s explore the faces, edges, and vertices that make up a cuboid’s structure.
Faces

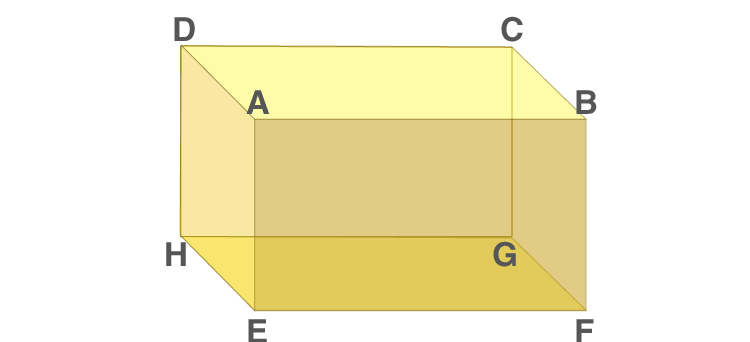

A cuboid has six rectangular faces. In the figure given a bove, these faces are named ABFE, DAEH, DCGH, CBFG, ABCD, and EFGH. In the cuboid figure above, the opposite and parallel faces are:- ABCD and EFGH (the top and bottom faces).
- ABFE and DCGH , DAEH and CBFG (the side faces, which are next to the top and bottom).
Edges
Edges are the line segments where two faces meet. A cuboid has 12 edges, and opposite edges are always equal in length. In the cuboid figure above, the edges AB, CD, GH, and EF are equal as they represent the length of the cuboid. Similarly, edges AE, BF, DH, and CG represent the width, while edges AD, BC, EH, and FG define the height. These edges give the cuboid its structure, connecting all the vertices and forming its rectangular framework.Vertices
Vertices are the points where three edges meet. A cuboid has eight vertices, labeled A, B, C, D, E, F, G, and H in the above figure. These points form the corners of the cuboid and outline its geometric shape.Diagonal of Cuboid
A cuboid is a 3D shape with two types of diagonals:- Face Diagonal
- Space Diagonal
Face Diagonal
A face diagonal is a straight line that connects two opposite corners of a single rectangular face of the cuboid. Since each face of a cuboid is a rectangle, you can draw two face diagonals on each face. A cuboid has 6 faces, and each face has 2 diagonals, giving a total of 12 face diagonals.Example: On the top face (ABCD), the diagonals are AC and BD . Similar diagonals can be drawn on the other five faces.
The length of a face diagonal can be calculated using the formula:Face Diagonal= √l 2 +b 2
Where l and b are the dimensions of the rectangle (length and breadth).Space Diagonal
A space diagonal is a line that connects two opposite corners of the cuboid, passing through its interior. Unlike face diagonals, space diagonals span across the entire cuboid, cutting through its 3D space. A cuboid has 4 space diagonals, as there are 4 pairs of opposite corners. Example: In a cuboid with vertices A, B, C, D, E, F, G, and H, the space diagonals are AG , BH , CE , and DF . The length of a space diagonal is calculated using the formula: Space Diagonal= √l 2 + b 2 + h 2 Where l, b, and h are the length, breadth, and height of the cuboid.Surface Area and Volume of Cuboid
A cuboid is a 3D shape that looks like a box or a brick, and understanding surface area and volume of cuboid helps us know how much space it covers or holds.Surface Area of a Cuboid
The surface area of a cuboid is the total area of all its six faces. Since the cuboid is a 3D shape, its surface area depends on three measurements: length (l), breadth (b), and height (h). There are two types of surface area to calculate:Total Surface Area of a Cuboid (TSA )
This is the total area of all six faces of the cuboid, including the top, bottom, and all the sides.Total Surface Area of a Cuboid Formula
TSA= 2(lb+bh+lh) square unit
The formula adds the area of the three pairs of opposite faces (length × breadth, breadth × height, and length × height) and multiplies it by 2 because each pair appears twice. Example: For a cuboid with l = 5 units, b = 3 units, h = 4 units l = 5 TSA = 2(5 × 3 + 3 × 4 + 5 × 4) = 2(15 +12 + 20) = 2(47) = 94 square units.Lateral Surface Area of Cuboid (LSA)
This is the total area of only the side faces, excluding the top and bottom.Lateral Surface Area of Cuboid Formula
LSA=2h(l+b) square units The formula calculates the area of the four side faces by adding the two vertical sides (height × length) and the two horizontal sides (height × breadth). Example: For a cuboid with l = 5 units, b = 3 units, h = 4 units LSA= 2(4×(5+3)) = 2(4×8)=2(32) =64 square units.Volume of Cuboid
The volume of cuboid is the amount of space it takes up. This depends on the cuboid’s length, breadth, and height.Volume of a Cuboid Formula:
Volume (V)=l × b × h cubic units The volume is calculated by multiplying the base area (l×b) with the height. It tells us how much the cuboid can hold. For a cuboid with l = 5 units, b = 3 units, h = 4 units V = 5 × 3 × 4 = 60 cubic units.Perimeter of Cuboid
The perimeter of cuboid is the total length of all its edges combined. A cuboid has 12 edges, and these edges can be grouped based on their lengths:- Length (l): Edges AB, CD, EF, and GH are equal.
- Breadth (b): Edges BC, AD, EH, and FG are equal.
- Height (h): Edges CG, BF, AE, and DH are equal.
Cuboid Formulas
The table below presents the formulas for a cuboid with length ( ll ), breadth ( bb ), and height ( hh ).| Cuboid Formulas | |
| Measure | Formula |
| Lateral Surface Area (LSA) | 2h(l + b) |
| Total Surface Area (TSA) | 2(lb + bh + hl) |
| Volume of cuboid | lbh |
| Perimeter of cuboid | 4(l + b + h) |
| Face Diagonal | √l 2 +b 2 |
| Space Diagonal | √l 2 + b 2 + h 2 |
Cuboid Solved Examples
Here are a few example problems that use the formulas for cuboids to help understand their properties: Find the volume of a cuboid with a length of 12 cm, breadth of 9 cm, and height of 6 cm. Solution: Given: Length l = 12 cm Breadth (b) = 9 cm Height (h) = 6 cm Volume (V) = l × b × h V = 12 × 9 × 6 = 648 cm ³ . Therefore, t he volume of the cuboid is 648 cm³ .Calculate the lateral and total surface area of a cuboid with dimensions 15 cm × 10 cm × 8 cm.
Solution: Given: Length (l) = 15 cm Breadth (b) = 10 cm Height (h) = 8 cm Lateral Surface Area (LSA): LSA= 2h(l+b) = 2h(l + b) = 2×8(15+10) =2×8×25 400 cm 2 Total Surface Area (TSA): TSA=2(lb+bh+hl) =2(15×10+10×8+8×15) =2(150+80+120) = 2×350=700 cm ² If the length and width of a cuboid are 9 inches and 12 inches, respectively, what is the face diagonal? Solution: Given:- Length (l) = 9 inches
- Width (w) = 12 inches
| Related Articles | |
| Area of Rectangle | Isosceles Triangle |
| Composite Numbers | Differentiation |
| Perimeter of Rectangle | Surface Area of Cylinder |
Cuboid FAQs
Name three objects in your house that look like cuboids.
A shoebox, a book, and a brick are examples of cuboids because they have six rectangular faces, twelve edges, and eight corners, making them perfect real-life representations of cuboids.
If you cover a cuboid box with wrapping paper, how many faces will you need to cover?
You need to cover six faces of the cuboid to wrap it completely.
You need to fit a shoebox inside a cupboard. Which measurement will you check first: length, breadth, or height?
Check all three measurements to ensure the shoebox fits perfectly.
Can a dice be a cuboid? Why or why not?
No, a dice isn’t a cuboid. It’s a cube because all its sides are equal. A cuboid has unequal length, breadth, and height.
If the base of a cuboid box is square, what can you say about its length and breadth?
The length and breadth must be equal because a square has equal sides.
