PW Class 7 Science Notes Chapter 3 Electricity: Circuits and Their Components

From powering household appliances to lighting up a room, electricity is used in many parts of daily life. However, understanding what makes an electrical device work involves learning how current moves through a circuit and how different components are connected. Terms such as terminals, circuit paths, switches, and electrical connections can be confusing when several components are introduced together.

PW Class 7 Science Chapter 3 Notes make these concepts easier to revise by covering electric cells, batteries, circuits, lamps, LEDs, switches, and circuit symbols. The notes also explain series and parallel circuits, conductors and insulators, and important safety measures related to electricity.

What Is Electricity Used For?

Electricity is an important form of energy used in homes, schools, factories, hospitals, and many other places. It powers devices such as:

• Lights

• Fans

• Televisions

• Refrigerators

• Computers

• Other electrical appliances

How Is Electricity Generated?

Electricity can be generated using different energy sources.

The generated electricity is transmitted through power lines and supplied to homes and other buildings through electrical connections and sockets.

What Are the Main Components of an Electric Circuit?

An electrical circuit contains different components that work together to allow current to flow.

What Is an Electric Circuit?

An electric circuit is a complete path through which electric current can flow.

A simple circuit generally consists of:

• Source: Provides electrical energy, such as a cell or battery

• Load: Uses electrical energy, such as a bulb or LED

• Connecting wires: Provide a conducting path

• Switch: Controls whether the path is complete or broken

A lamp glows when the circuit is closed and the path for current is complete. When the circuit is open, current cannot flow and the lamp does not glow.

What Is an Electric Cell?

An electric cell is a small, portable source of electrical energy. It converts chemical energy into electrical energy.

An electric cell has two terminals:

• Positive terminal (+): Usually marked by a raised metal cap

• Negative terminal (−): Usually the flat metal base

The terminals allow the cell to be connected to other components in a circuit.

What Is a Battery?

A battery is made by connecting two or more electric cells together.

In a typical battery arrangement, cells are connected with their positive and negative terminals in the required sequence. A battery can provide electrical energy to operate devices that require more than a single cell.

What Is a Torchlight?

A torchlight is a portable electrical device that produces light.

Its main components include:

• One or more electric cells

• A lamp or LED

• A switch

• Connecting parts that complete the circuit

When the switch is turned ON, the circuit is completed and the lamp or LED produces light.

What Are Incandescent Lamps and LED Lamps?

Electrical lamps can work in different ways. Two common types are incandescent lamps and LED lamps.

Incandescent Lamp

An incandescent lamp contains a thin wire called a filament. When electric current passes through the filament, it becomes very hot and glows.

Its main parts include:

• Glass bulb

• Filament

• Supporting wires

• Insulating support

• Metal case

• Metal tip

The filament is connected to the terminals through supporting wires. It glows when the circuit is complete.

LED Lamp

LED stands for Light Emitting Diode. An LED produces light without using a heated filament.

An LED has two terminals:

• Longer wire — positive terminal

• Shorter wire — negative terminal

Unlike an incandescent lamp, an LED works when connected in the correct direction. Therefore, its terminals must be connected appropriately in a circuit.

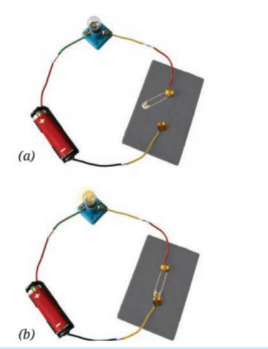

How Does a Switch Control an Electric Circuit?

A switch is used to open or close an electric circuit.

A simple switch can also be made using materials such as cardboard, pins, and connecting wires.

What Are Circuit Diagrams?

A circuit diagram represents an electrical circuit using standard symbols instead of drawings of actual components.

Common symbols are used for:

• Electric cell

• Battery

• Electric lamp

• LED

• Switch

• Wire

Circuit diagrams make it easier to represent and understand how different electrical components are connected.

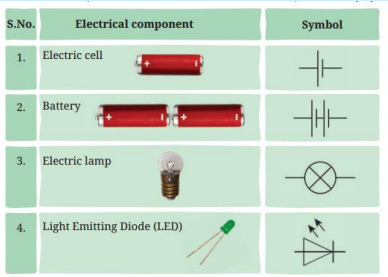

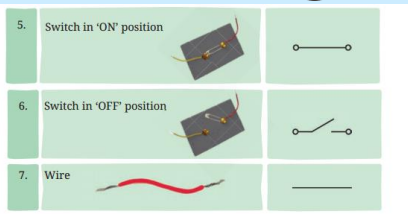

Common Electrical Components and Symbols

What Are Series and Parallel Circuits?

Electrical components can be connected in different ways.

Series Circuit

In a series circuit, components are connected one after another in a single path.

• Components are connected end-to-end.

• The same current passes through each component.

• There is only one main path for current.

Parallel Circuit

In a parallel circuit, components are connected across common points, creating separate branches.

• Components have separate paths for current.

• The voltage across components connected in parallel is the same.

What Are Conductors and Insulators?

Materials differ in their ability to allow electric current to pass through them.

Conductors

Conductors are materials that allow electric current to pass through them.

Examples:

• Copper

• Iron

• Aluminium

Conductors are commonly used inside electrical wires.

Insulators

Insulators do not allow electric current to pass through them easily.

Examples:

• Rubber

• Plastic

• Wood

Insulating materials are often used to cover electrical wires and provide protection from electric shocks.

What Is the Difference Between DC and AC?

Electricity can be supplied in different forms.

• Direct Current (DC): Current from an electric cell or battery flows in one direction.

• Alternating Current (AC): The direction of current changes periodically. Electricity supplied through household wall sockets is AC.

Cells and batteries are commonly used to power portable devices, while AC electricity supplied through sockets is used for many household appliances.

What Are the Important Electrical Safety Rules?

Electricity can be dangerous when electrical components are handled carelessly. Follow these precautions:

• Never touch electrical devices with wet hands.

• Do not use damaged wires or faulty electrical appliances.

• Avoid touching exposed wires.

• Keep electrical connections properly insulated.

• Switch off electrical devices when they are not in use.

• Never experiment with household electrical sockets.

• Handle electrical appliances carefully.

• Remember that the human body can conduct electricity, so electric shocks can cause serious injury or may be fatal.

Class 7 Science Chapter 3 Notes PDF

Download the Class 7 Science Chapter 3 Notes PDF to revise Electricity: Circuits and Their Components in a concise format. The PDF covers the important concepts and examples from the chapter, including

How Can Physics Wallah Class 7 Science Chapter 3 Notes Help You Revise?

Physics Wallah Class 7 Science Chapter 3 Notes make it easier to revisit the concepts related to electrical circuits and their components. You can use them to quickly recall definitions, component functions, circuit connections, and safety precautions.

• Recall Circuit Components: Revise the functions of cells, batteries, switches, lamps, LEDs, and wires.

• Understand Current Flow: Remember the difference between open and closed circuits.

• Learn Circuit Symbols: Revise the symbols used to represent common electrical components.

• Compare Connections: Understand the basic features of series and parallel circuits.

• Revise Conductors and Insulators: Recall their properties and everyday examples.

• Understand Lamps: Review how incandescent lamps and LEDs produce light.

• Remember Safety Rules: Revisit precautions for handling electricity safely.

• Strengthen Revision: Use key definitions, examples, and comparisons before school assessments.

Electricity: Circuits and Their Components introduces the basic ideas needed to understand electric circuits and their everyday uses. Learning about cells, batteries, switches, lamps, LEDs, conductors, and circuit connections helps you understand how electrical devices work and why safety precautions are important.
