ANGLE OF FRICTION

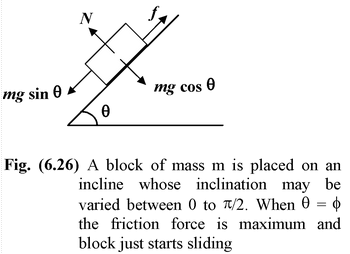

Suppose a body is placed on an inclined surface whose angle of inclination θ varies between 0 to π/2. The coefficient of friction between the body and the surface is µs. Let the initial value of θ be zero and if we slowly start increasing the value of θ, then at a particular value of θ = φ the block just starts to move. This value of θ =φ is called the angle of friction.

Mathematically, if the block is just about to move, thenmg sin θ = f

Whenθ = φ, mg sin φ =fmax

ormg sin φ = µsN = µsmg cos φ ortanφ = µs

Thusφ = tan−1µs

Example : 6.15

A block of mass m is placed at rest on an inclined plane whose angle with the horizontal is more than the angle of friction (θ > φ). An external force parallel to the inclined plane is applied in the upward direction to keep it in equilibrium. Find the magnitude of the force F.

Solution

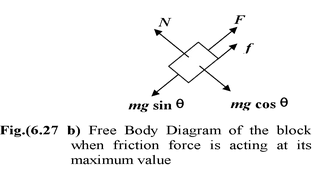

Since the block has a tendency to move downward, the force of friction acts upward on the block as shown in its free body diagram.
Fig. (6.27 b)

Applying equation of equilibrium,

N = mg cos θ

F + fmax = mg sin θ

orF = mg sin θ − fmax

= mg sin θ − µsmg cos θ

orF = mg (sin θ − µs cos θ)

If the magnitude of F is further increased then the block has a tendency to move upward; the direction of friction force gets reversed. The block will not start moving up unless the external force attains the maximum value.

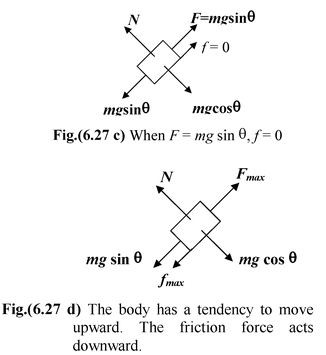

The free body diagram of the body is shown in Fig. (6.27 d)

Applying the equations of equilibrium

N = mg cos θ

Fmax = mg sin θ + fmax

orFmax = mg (sin θ + µs cos θ)

Conclusion

The block remains stationary if

Fmin ≤ F ≤ F max

or mg(sin θ −µs cos θ) ≤ F ≤ mg(sin θ + µs cos θ)

A block is placed at rest on a horizontal surface. The coefficient of friction between the block and the surface is µs. It is pulled with a force F at an angle θ with the horizontal as shown in the figure. Find the value of θ at which minimum force is required to move the block.

Solution

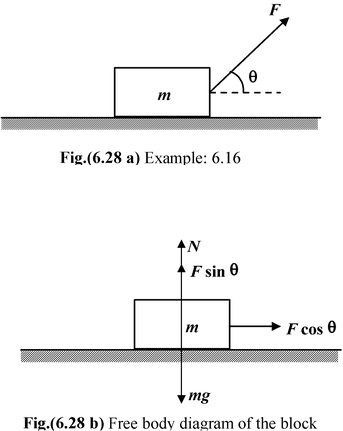

The free body diagram of the block is shown in the figure.

Applying Newton’s Second Law

N + F sin θ = mg(i)

F cos θ = fmax = µsN(ii)

orF cos θ = µs(mg − Fsin θ)

orF(cos θ + µssin θ) = µsmg(iii)

For minimum value of F,

A small block of mass 2 kg is placed at rest on a large block of mass 3 kg. The coefficient of friction between the two blocks is µs = 0.3 and μk = 0.2. The horizontal surface is smooth. A horizontal force F is applied on the lower block. Find the acceleration of each block when

(a) F = 10 N(b) F = 20 N

Solution

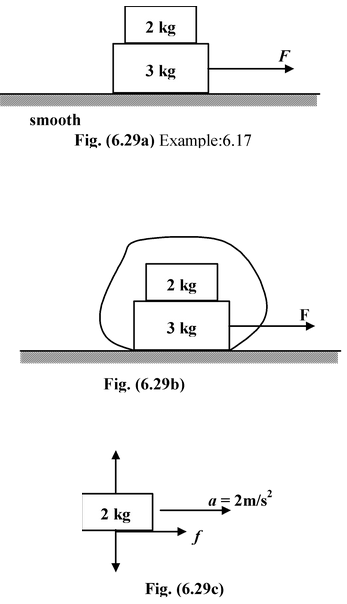

(a)Let us consider both the blocks move together. Then they by observing the free body diagram, we have

a = m/s ²

Now, we have to check whether the two blocks really move together or not. For this we find the force of friction between the two blocks and if it is found to be less than or equal to fmax then the blocks move together.

From the free body diagram of the 2 kg block

f = ma =(2) (2) = 4 N

Since fs(max) = µsN = (0.3) (20) = 6 N

and f < fs(max)

Thus, the blocks move together with an acceleration a = 2 m/s2

(b)Assuming the blocks move together

a = m/s2

From the free body diagram of the 2 kg block, we get

f = ma = (2) (4) = 8 N > fmax

The blocks do not move together but moves relative to each other so kinetic friction starts acting.

fk =μkN = 0.2(2)g = 4 N

Applying Newton’s Second Law,

Block m = 2kg;fk = 2a1

or a1 = m/s ²

Block m = 3kg; F−fk = 3a ²

or a2 = 20 - 4/3 = 16/3 m/s ²
