Stress, Strain and Elastic Modulii

Stress, Strain and Elastic Modulii

A force applied to an object can change its dimensions and shape. In general, the response of a material to a given type of deforming force is characterized by an elastic modulus, which is defined as

Elastic modulus = Stress/Strain (12.1)

The precise definition of stress depends on the particular situation being considered, but in general it is a force per unit area.

The strain indicates some fractional change in a dimension or volume. The unit of stress is N/m2, whereas strain is a dimensionless number.

Young’s Modulus

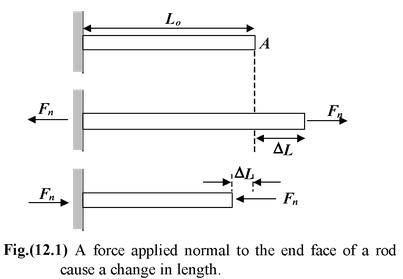

Young’s modulus is a measure of the resistance of a solid to a change in its length when a force is applied perpendicular to a face. Consider a rod with an unstressed length Lo and cross-sectional area A, as shown in the figure(12.1). When it is subjected to equal and opposite forces Fn  along it axis and perpendicular to the end faces its length changes by ΔL. These forces tend to stretch the rod. The tensile stress on the rod is defined as

σ = F _n /A (12.2)

Forces acting in the opposite direction, as shown in figure(12.1), would produce a compressive stress. The resulting strain is defined as the dimensionless ratio.

ε = ΔL/Lo  (12.3)

Example: 12.1

A metal wire 75 cm long and 0.139 cm in diameter stretches 0.035 cm when a load of 8.0 kg is hung on its end. Find the stress, the strain, and the Young’s modulus of the material of the wire.

Solution

Stress  = = 5.91 × 10 ⁷ N/m ²

Strain =

Y = = 1.27 × 10 ¹¹ Nm ^-2

Example: 12.2

A solid cylindrical steel column is 4.0 m long and 9.0 cm in diameter. What will be its decrease in length when carrying a load of 80000 kg? Y = 1.9 × 1011 Nm-2.

Solution

Let us first calculate the cross-sectional area of column = πr ² = π(0.045 m)2

= 6.36 × 10 ^-3 m ²

Then, from Y = (F/A)(ΔL/L) we have

ΔL = = 2.6 × 10-3 m = 2.6 mm

Shear Modulus

The shear modulus of a solid measures its resistance to a shearing force, which is a force applied tangentially to a surface, as shown in the figure (12.2). (Since the bottom of the solid is assumed to be at rest, there is an equal and opposite force on the lower surface.) The top surface is displaced by Δx relative to the bottom surface. The shear stress is defined as

Shear Stress = Tangetial Force/Area

T =  F _t /A    (12.5)

where A is the area of the surface.

The shear strain is defined as

Shear strain = x/y (12.6)

Example: 12.3

A box shaped piece of gelatin dessert has a top area of 15 cm2 and a height of 3 cm. When a shearing force of 0.50 N is applied to the upper surface, the upper surface displaces 4 mm relative to the bottom surface. What are the shearing stress, the shearing strain, and the shear modulus for the gelatin?

Solution

Shear stress = = 333 Pa

Shear strain =

Shear modulus G =

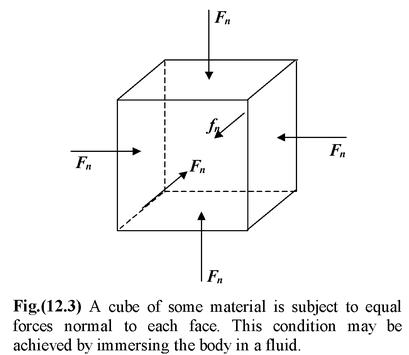

p = F _n /A  (12.8)

The SI unit of pressure is N/m ² and is given the name pascal (Pa).

Pressure is a scalar because on any infinitesimal volume, it acts in all directions; it has no unique direction.

When the pressure on a body is increased, its volume decreases. The change in pressure ΔP is called the volume stress and the fractional change in volume ΔV/V is called the volume strain. The bulk modulus B of the material is defined as

Bulk modulus = Volume stress/Volume strain

or B = (12.9)

The negative sign is included to make B a positive number since an increase in pressure
(Δp > 0) leads to decrease in volume (ΔV < 0).

The inverse of B is called the compressibility,

k = 1/B(12.10)

Table 12.1 Elastic Properties of Matter
