PW Class 7 Maths Notes Chapter 7: A Tale of Three Intersecting Lines

Triangles are one of the basic shapes in geometry, but understanding their different types and properties requires you to look closely at their sides and angles. In A Tale of Three Intersecting Lines, you learn how triangles are classified, how their angles are related, and what conditions their sides must satisfy.

PW Class 7 Maths Chapter 7 Notes bring these concepts together with simple explanations, important properties, and construction rules. They can help you recall the angle sum property, triangle inequality, altitude, and other key ideas before solving NCERT exercises and preparing for school assessments.

Understanding Triangles and Their Properties

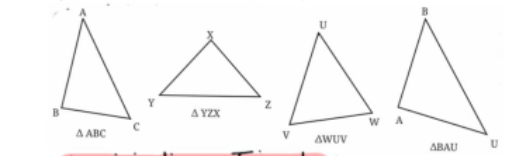

A triangle is a three-sided polygon formed by joining three non-collinear points. It has three sides, three angles, and three vertices. Triangles can be named using their vertices, such as △ABC, △YZX, or △WUV.

Understanding the basic parts of a triangle makes it easier to study its classification and properties.

How Are Triangles Classified?

Triangles can be classified based on their sides and angles.

Classification Based on Sides

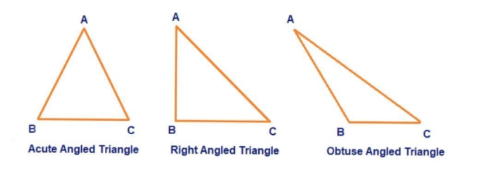

Classification Based on Angles

What Are the Properties of Equilateral and Isosceles Triangles?

Some triangles have special properties because of the relationship between their sides and angles.

Equilateral Triangle

• All three sides are equal.

• All three angles measure 60°.

• All three altitudes are equal.

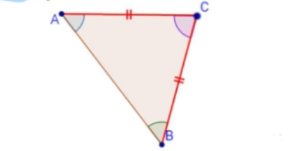

Isosceles Triangle

• Two sides are equal.

• The angles opposite the equal sides are also equal.

These properties can help you identify triangles and solve questions involving unknown sides or angles.

What Is the Triangle Inequality?

The triangle inequality describes the relationship between the lengths of the sides of a triangle.

• The sum of any two sides is greater than the third side.

• The difference between any two sides is less than the third side.

For example, if the sides of a triangle are 5 cm, 6 cm, and 8 cm, then:

5 + 6 > 8

Therefore, these lengths satisfy the triangle inequality.

This property can also help you determine whether three given lengths can form a triangle.

Understanding the Angle Properties of a Triangle

The angles of a triangle follow important rules that are useful for solving geometry questions.

Angle Sum Property

The sum of the three interior angles of a triangle is always 180°.

∠A + ∠B + ∠C = 180°

Exterior Angle Property

An exterior angle of a triangle is equal to the sum of its two opposite interior angles.

Exterior angle = Sum of two opposite interior angles

These properties can be used to find missing angles in different types of triangle questions.

What Is the Altitude of a Triangle?

An altitude is a perpendicular line segment drawn from a vertex of a triangle to the opposite side or its extension. It represents the perpendicular distance from the vertex to the opposite side.

The number and length of altitudes depend on the type of triangle.

• Scalene Triangle: Its altitudes are different.

• Isosceles Triangle: The altitudes drawn to the equal sides are equal.

• Equilateral Triangle: All three altitudes are equal.

Understanding altitudes is important when working with different triangle diagrams and geometric measurements.

When Are Two Lines Parallel?

Angles formed by intersecting lines can help determine whether two lines are parallel.

If the interior angles on the same side of a transversal add up to 180°, the two lines are parallel.

This condition helps you use angle relationships to identify parallel lines in geometry problems.

How Can You Construct a Triangle?

A triangle can be constructed when specific measurements are given. The construction method depends on the information available.

A triangle cannot be constructed if the given measurements do not satisfy the required conditions.

When Is a Triangle Not Possible?

• The sum of two given angles is 180° or more.

• Both given angles are 90° or more.

Checking these conditions before construction can help you determine whether the required triangle is possible.

Class 7 Maths Chapter 7 Notes PDF

Use the A Tale of Three Intersecting Lines Chapter 7 Notes PDF to recall triangle properties, angle rules, triangle inequality, altitudes, and construction conditions while practising questions.

How PW Notes for Class 7 Maths Chapter 7 Can Help You

PW Class 7 Maths Chapter 7 Notes cover the key concepts of A Tale of Three Intersecting Lines in an easy-to-revise format. They help you recall important properties, understand relationships between sides and angles, and strengthen your preparation for geometry questions.

• Understand Triangle Classification: Learn how triangles are classified based on their sides and angles.

• Revise Important Properties: Recall the properties of equilateral and isosceles triangles while solving questions.

• Remember Angle Rules: Quickly revisit the angle sum and exterior angle properties of triangles.

• Practise Triangle Inequality: Understand the relationship between the three sides and check whether given lengths can form a triangle.

• Recall Altitude Properties: Revise the meaning of altitude and how altitudes differ in different types of triangles.

• Understand Construction Conditions: Remember the conditions required to construct a triangle using given sides or angles.

• Strengthen Geometry Preparation: Use the notes before attempting NCERT exercises and important questions from the chapter.

Understanding the relationships between sides, angles, and lines can make triangle-based questions easier to solve. A Tale of Three Intersecting Lines introduces important ideas such as triangle classification, inequality, angle properties, altitudes, and construction. PW Class 7 Maths Chapter 7 Notes help you recall these concepts clearly and build confidence before solving questions and preparing for school exams.
