SOME IMPORTANT TERMS RELATED TO SPHERICAL MIRRORS

CENTRE OF CURVATURE (C):

The centre of curvature of a spherical mirror is the centre of the imaginary hollow sphere of glass, of which the spherical mirror is a part. The centre of curvature is usually denoted by the letter C. The centre of curvature of a concave mirror is in front of it and the centre of curvature of convex mirror is behind the mirrors as shown in the figure.

RADIUS OF CURVATURE (R):

The radius of curvature of a spherical mirror is the radius of the imaginary hollow sphere of glass, of which the spherical mirror is a part. The radius of curvature is usually denoted by the letter ‘R’.

In figure above the distance PC is the radius of curvature of a concave mirror and in figure (b) the distance PC is the radius of curvature of a convex mirror.

POLE (P) :

The centre of the reflecting surface of a spherical mirror is called its pole. It is usually denoted by the letter ‘P’ in each concave and convex mirror. The pole of a spherical mirror lies on the surface of the mirror.

PRINCIPAL AXIS:

The principal axis of a spherical mirror is the straight line passing through the centre of curvature C and pole P of a spherical mirror, produced on both sides.

APERTURE:

The portion of a mirror from which the reflection of light actually takes place is called the aperture of the mirror. It is also called linear aperture of the mirror. The aperture of a spherical mirror is denoted by the diameter of its reflecting surface.

FOCAL PLANE:

A plane passing through the principal focus and at right angles to the principal axis of a spherical mirror is called its focal plane.

FOCAL LENGTH:

The distance between the pole and the focus is called the focal length. The focal length is half the radius of curvature.

PRINCIPAL FOCUS:

RELATION BETWEEN RADIUS OF CURVATURE AND FOCAL LENGTH OF A SPHERICAL MIRROR:

For spherical mirror having small aperture, the principal focus ‘F’ lies exactly at the mid point of the pole P and the centre of curvature C as shown in the figure 12 & 13. Therefore the focal length of a spherical mirror (concave or convex) is equal to half of its radius of curvature.

i.e.

Related Topics

• Spherical Lenses
• Mirror Formula
• Optical Density

CONCAVE AND CONVEX MIRROR:

Convex mirror is a spherical mirror, whose inner (cave type) surface is silvered and reflection takes place at the outer (convex) surface.

Concave mirror is a spherical mirror, whose outer bulged surface is silvered and reflection takes place from the inner hollow (cave type) surface.

Rules for the formation of images by concave & convex mirrors:

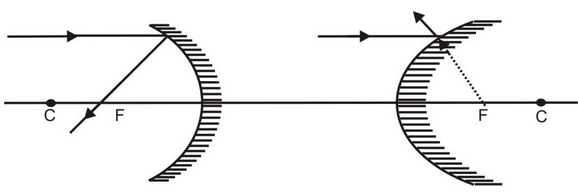

(i) A ray incident parallel to the principal axis actually passes (concave) or appears to pass (convex) through the focus.

Concave Convex

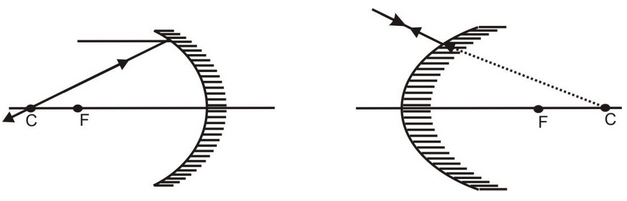

(ii) A ray incident through the centre of curvature (C) falls normally and is reflected back along the same path.

Concave Convex

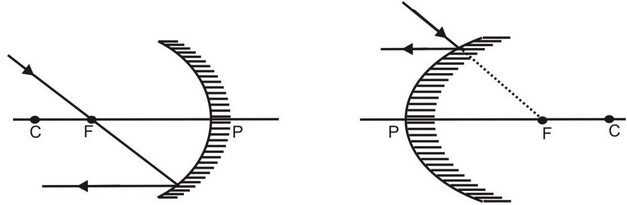

(iii) A ray incident through the focus is reflected parallel to the principal axis.

Concave Convex

FORMATION OF DIFFERENT TYPES OF IMAGES BY A CONCAVE MIRROR IN DIFFERENT POSITIONS OF THE OBJECT:

The type of image formed by a concave mirror primarily depends on the position of the object in front of the mirror. When an object is moved closer to the mirror, starting from infinity, the following six cases arise:

(i) When the object is at infinity

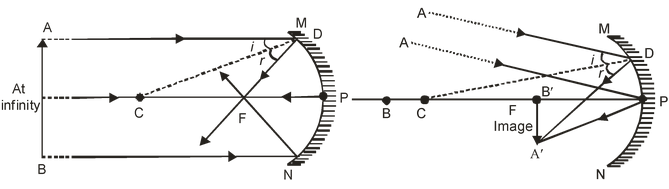

When the object is at infinity, the rays of light starting from the object on travelling such a large distance are assumed to become parallel to each other while falling on the mirror. These parallel rays of light may fall on the mirror in the following two ways.

In the above two cases image is formed at the focus of the mirror. Therefore we can say that when the object is at infinity. The image is:

(a) Formed at the focus ‘F’ of the mirror.

(b) Real and inverted.

(c) Highly diminished, point sized.

(ii) When the object is beyond the centre of curvature ‘C’ of concave mirror

(iii) When the object is at the centre of curvature of concave mirror

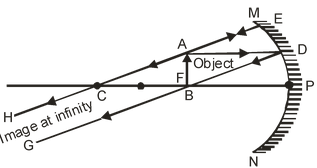

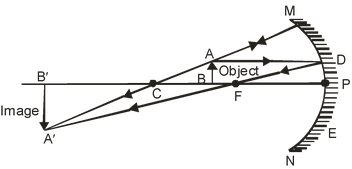

(iv) When the object is placed between the centre of curvature ‘C’ and Focus ‘F’ of concave mirror

(v) When the object is at the Focus ‘F’ of a concave mirror

(vi) When the object is placed between Focus ‘F’ and pole ‘P’ of the concave mirror

Image formation by a concave mirror for different positions of the object:

USES OF CONCAVE MIRROR:

• They are used as shaving mirrors.
• They are used as reflectors in car head-lights, search lights, torches and table lamps.
• They are used by doctors to concentrate light on body parts like ears and eyes which are to be examined.
• Large concave mirrors are used in the field of solar energy to focus sun-rays on the objects to the heated.

METHOD TO FIND OUT THE APPROXIMATE FOCAL LENGTH OF A CONCAVE MIRROR:

To find out the approximate focal length of a concave mirror, focus a distant object (at infinity) on a screen by using a concave mirror whose focal length is to be determined. The sharp image of this object will be formed at the focus of the concave mirror. The distance of the image so formed from the concave mirror is equal to the focal length of concave mirror. Measure this distance with the help of a scale. It will give us the approximate focal length of the concave mirror.

FORMATION OF DIFFERENT TYPES OF IMAGES BY A CONVEX MIRROR IN DIFFERENT POSITIONS OF THE OBJECT:

The type of image formed by a convex mirror primarily depends upon the position of the object in front of the mirror. When an object is moved closer to the mirror, starting from infinity, the following two cases arise:

(i) When the object is at infinity

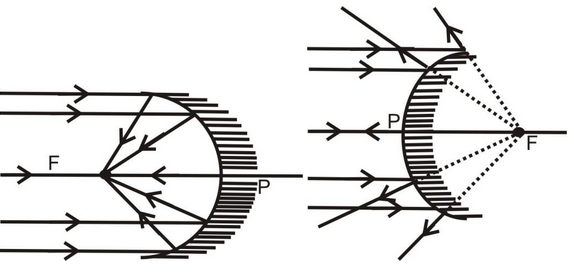

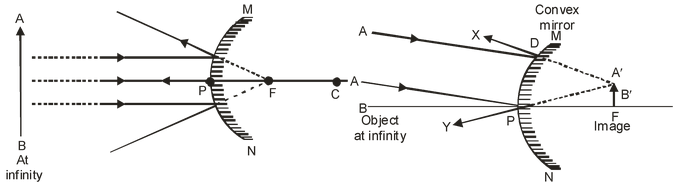

When the object is at infinity, the rays of light starting from the object on travelling such a large distance are assumed to become parallel to each other while falling on the mirror. These parallel rays of light may fall on the mirror in the following two ways–

(a) All the incident rays become parallel to the principal axis of the convex mirror.

(b) All the incident rays falling obliquely to the principal axis.

In the above two cases image is formed at the Focus ‘F’ of the convex mirror, behind the mirror.

Therefore, we can say that when the object is at infinity, the image is formed

• At the Focus ‘F’ behind the mirror.
• Virtual and erect.
• Highly diminished, point sized (much smaller than the object).

(ii) When the object is at finite distance from the convex mirror. i.e. between infinity and the pole P of the convex mirror :

Image formation by a convex mirror for different positions of the object:

USES OF CONVEX MIRROR:

Some of the practical uses of convex mirrors are:

• A convex mirror is used as a reflector in street lamps. As a result, light from the lamp diverges over a large area.
• Convex mirrors are used as rear-view mirrors in automobiles (like cars, trucks and buses) to see the objects (traffic) at the rear side.

The convex mirror is preferred as a rear view mirror because:

• A convex mirror always produces an erect image of the objects.
• The size of the image formed by a convex mirror is highly diminished or much smaller than the object, due to which it covers a wide field of view, which enables the driver to view much larger area of the traffic behind him than would be possible with a plane mirror concave mirror.

METHOD TO DISTINGUISH BETWEEN A PLANE MIRROR, A CONCAVE MIRROR AND A CONVEX MIRROR WITHOUT TOUCHING THEM:

To distinguish between a plane mirror, a concave mirror and a convex mirror, without touching them, we simply look at the image of our face in the three mirrors, turn by turn.

All of them will produce an image of our face but of different types.

A plane mirror will produce virtual and erect image of the same size as our face and we will look our normal self.

A concave mirror will produce a virtual, erect and magnified image of our face i.e. our face will look much bigger.

A convex mirror will produce a virtual, erect but diminished image of our face i.e. our face will look much smaller.

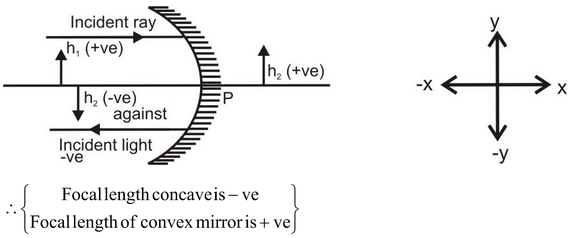

SIGN CONVENTION FOR MEASURING DISTANCE IN CONCAVE & CONVEX MIRROR:

(i) All distances are measured from the pole.

(ii) The incident ray is taken from left to right.

(iii) Distances measured in the same direction as that of the incident ray are taken to be +ve.

(iv) Distances measured in a direction opposite to the incident ray are taken to be -ve.

(v) Distances measured upwards and perpendicular to principal axis are taken +ve.

(vi) Distance measured downwards and perpendicular to principal axis are taken -ve.

IMPORTANT: These signs are according to the rectilinear co-ordinate system.

NOTE: Always draw a rough ray diagram while solving a numerical problem. Otherwise we will be confuse as to which distance should be taken as +ve & which -ve.

For virtual image : M is +ve [as virtual image is erect h1 is + ve as well as h2 is + ve

For real image : m is -ve [as real image is always inverted h2 is – ve while h1 is + ve]
